Introduction

Writerside works by translating the markdown files for each page to HTML format. In doing so, it is only accessible via a web-server. When previewing my documentation that you are currently reading, it is hosted locally, as shown in the following image:

Screenshot showing WriterSide running a web-server on localhost

Research & Reading Documentation

To build and publish the documentation, WriterSide requires a public web-server if I'd like anyone to have access to this documentation. Luckily, there is a whole section of WriterSide's documentation that explains the variety of deployments the software can make use of. The one that caught my eye was the page for GitHub. This documentation states that it can automatically be deployed to GitHub and hosted on GitHub Pages through the use of their feature, actions.

GitHub actions and workflows

WriterSide provides a YAML format file that can be read by GitHub, to automate the building and deployment process to GitHub pages:

name: Build documentation on: push: branches: - main - master workflow_dispatch: permissions: id-token: write pages: write env: INSTANCE: 'Writerside/hi' ARTIFACT: 'webHelpHI2-all.zip' DOCKER_VERSION: '233.14938' jobs: build: runs-on: ubuntu-latest steps: - name: Checkout repository uses: actions/checkout@v4 - name: Build docs using Writerside Docker builder uses: JetBrains/writerside-github-action@v4 with: instance: ${{ env.INSTANCE }} artifact: ${{ env.ARTIFACT }} docker-version: ${{ env.DOCKER_VERSION }} - name: Save artifact with build results uses: actions/upload-artifact@v4 with: name: docs path: | artifacts/${{ env.ARTIFACT }} artifacts/report.json retention-days: 7 test: needs: build runs-on: ubuntu-latest steps: - name: Download artifacts uses: actions/download-artifact@v4 with: name: docs path: artifacts - name: Test documentation uses: JetBrains/writerside-checker-action@v1 with: instance: ${{ env.INSTANCE }} deploy: environment: name: github-pages url: ${{ steps.deployment.outputs.page_url }} needs: [build, test] runs-on: ubuntu-latest steps: - name: Download artifacts uses: actions/download-artifact@v4 with: name: docs - name: Unzip artifact run: unzip -O UTF-8 -qq '${{ env.ARTIFACT }}' -d dir - name: Setup Pages uses: actions/configure-pages@v4 - name: Package and upload Pages artifact uses: actions/upload-pages-artifact@v3 with: path: dir - name: Deploy to GitHub Pages id: deployment uses: actions/deploy-pages@v4

After setting this up, whenever I push my documentation to GitHub via Git CLI, the following workflow will be run:

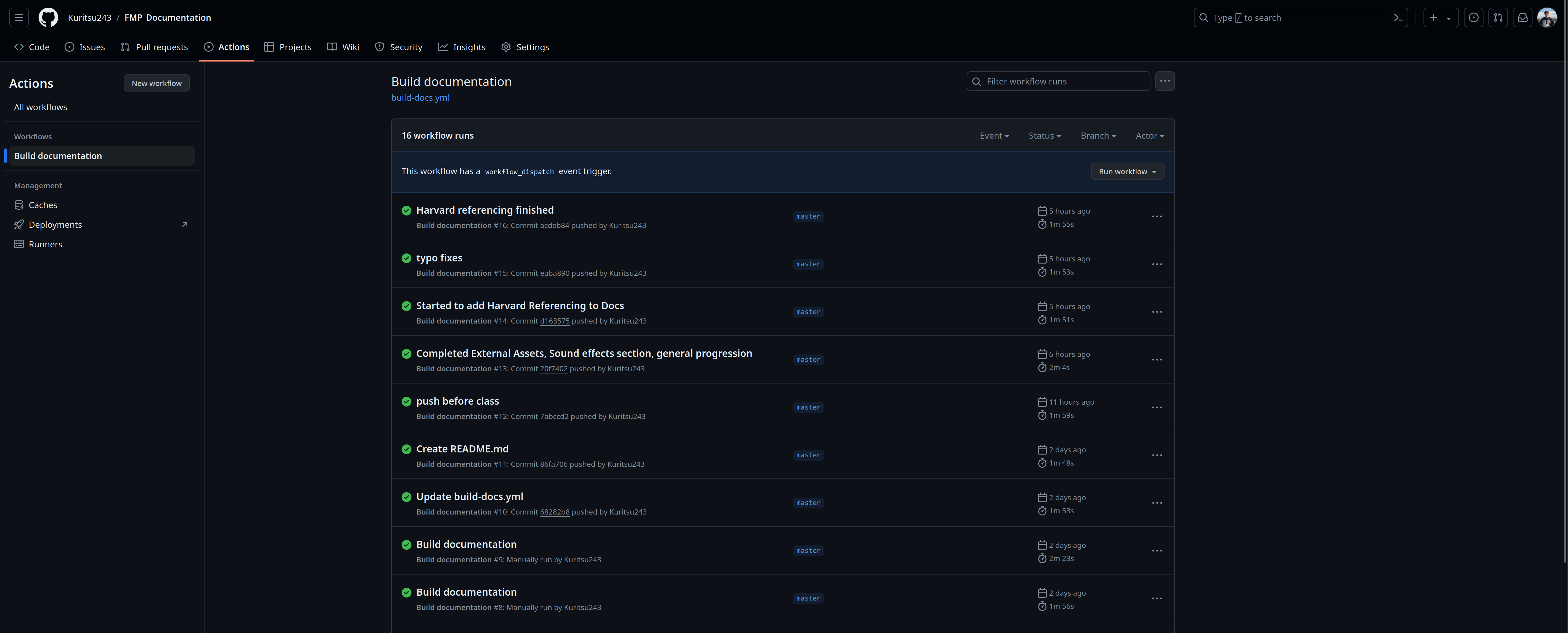

Screenshot showing my past workflow runs on GitHub

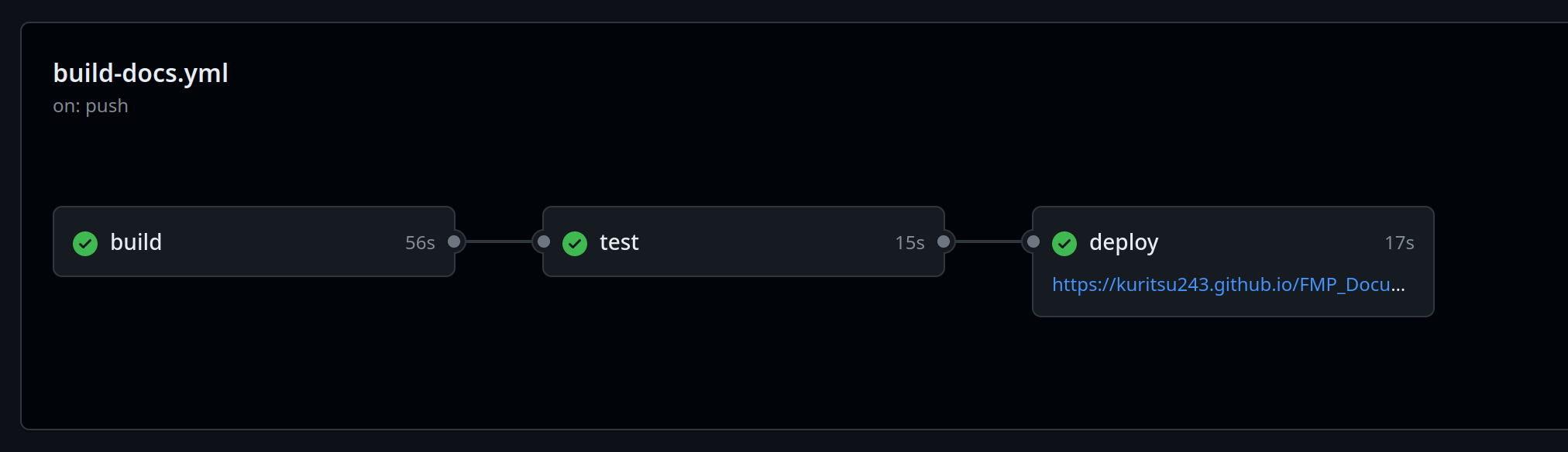

This is extremely useful, as I can also track the phases of deployment that the action is currently in:
